Componentes Humprhee Instalados en la Embarcación

Humphree Interceptores:

  • TWIN FIN 0.6m2 X900mm, 50mm blade deployment

Sistemas de control Humphree:

  • ACTIVE +

Datos de la Intervención

  • Top speed: 31 knots
  • LOA: 12,24 m
  • Beam: 4,49 m
  • Displacement: 13.000 kg

Resultados de la Instalación

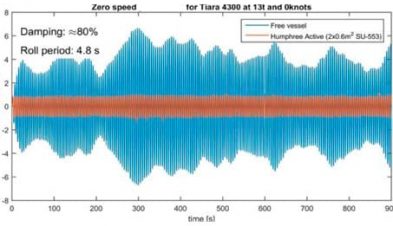

  • 80% roll reduction at speed 0
  • Speed increase of around 1 knot at hump speed when using Automatic Trim Control
  • Bow trim was reduced with 2° at hump speed, good visibiliy
  •  5% fuel savings at hump speed
  • Automatic List Control makes a more comfortable and stable navigation

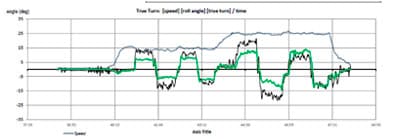

  • Turn angle reduced 37.5% at full speed and more comfortable and stable navigation when using Coordinated Turn

Descargue el PDF de la Referencia

RESULTADOS DE LA PRUEBA DE MAR

imagen humphree sealine f42 references camber marine 5
imagen humphree sealine f42 references camber marine 1
imagen humphree sealine f42 references camber marine
