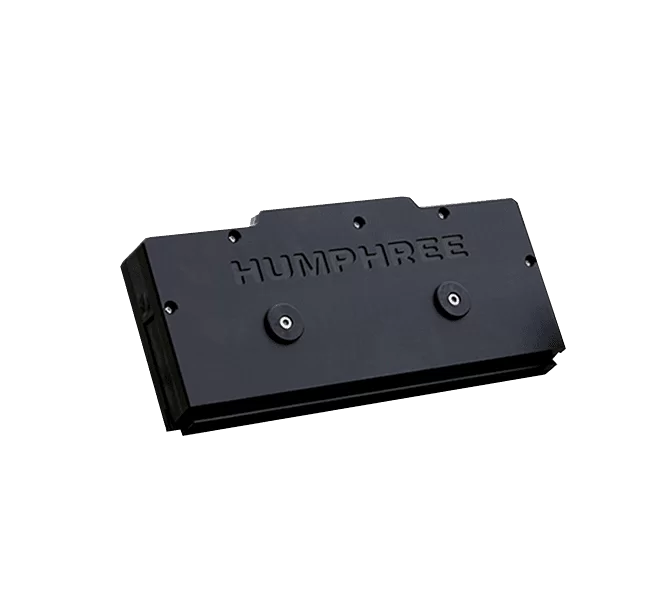

X series
The X-series interceptors of Humphree are suitable for boats from 6 to 18 meters long and are available in five different sizes. The X series offers the same reliability and performance as other larger interceptor series. Additionally, for superior control of dynamic helmet movements, all sizes in this series feature an interceptor blade with a powerful 50mm extension. If your boat meets these measurements, this is the perfect stabilization system for you.
Specific features of the X series:
- Five standard sizes: X300, X450, X600, X750 and X900
- Stroke length: 50mm
- Mounting plates: 20mm composite
- Thickness of the shaft:
- Short shaft kit (standard): thickness <80mm
- Long shaft kit (optional): thickness <140mm

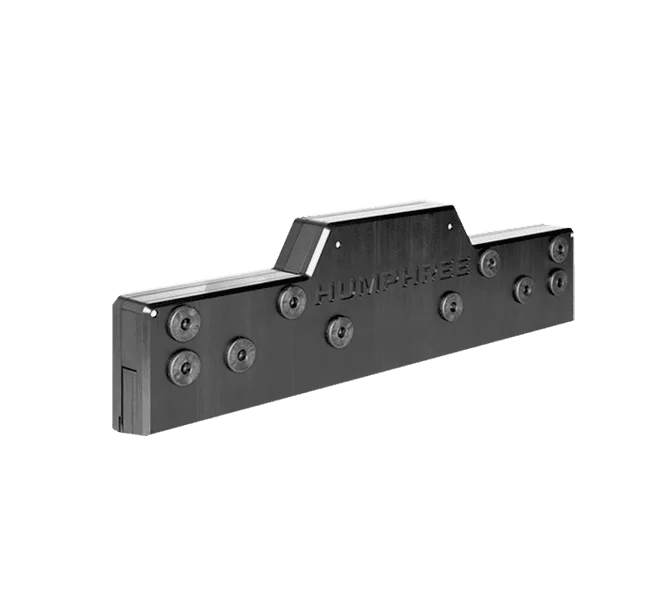

H series
The H series is characterized by its customization. With these interceptors, no matter how your boat’s hull is designed, there is always a solution to make the H-series interceptors fit for it. It is available in any size between 350 and 1,500 mm wide and can also be adapted to fit any design.
The characteristics of the H series are:
- Five standard sizes: X300, X450, X600, X750 and X900 (300 -900 mm)
- Stroke length: 50mm
- Mounting plates: 20mm composite
- Thickness of the shaft:
- Short shaft kit (standard): thickness <80mm
- Long shaft kit (optional): thickness <140mm

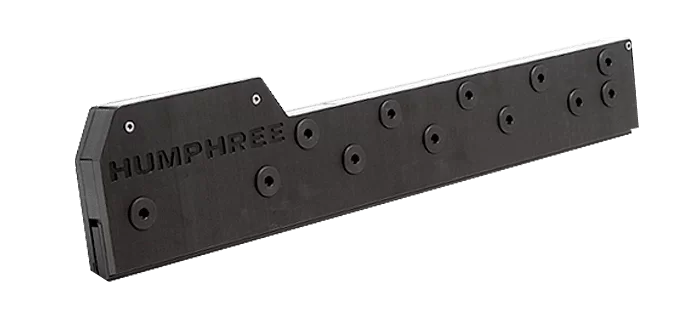

HA series
HA series of Humphree interceptors differ from the rest due to the positioning of the servomotor. It is no longer located centrally instead it is installed on either side. Thanks to this unit, the HA series can be used when it has to fit under a propulsion system, when the shaft area is limited or when the internal structure of the engine room does not allow for a centrally placed servo. In addition, the HA interceptor can be customized to achieve a perfect fit.
Know its characteristics:
- Available sizes: HA500 – HA1100
- Stroke length: 50mm
- Mounting plates: 20mm or 30mm composite
- Thickness of shaft:
- Short shaft kit (standard): thickness <80mm
- Long shaft kit (optional): thickness <140mm
Unrivalled comfort and performance
25%
more efficient than traditional stabilisers
Multiple winner of the award for best active stabilisation system

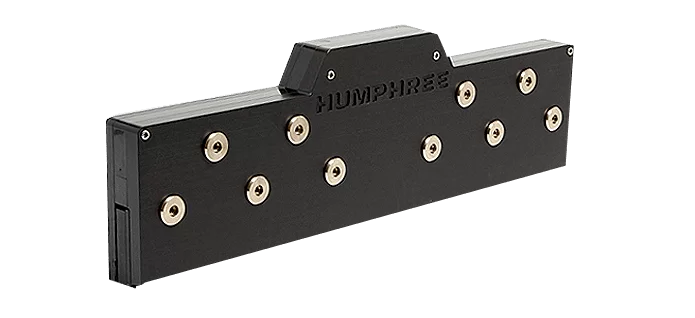

HE series
The HE series is perfect for intensive use. Unlike other standard 50mm interceptors, the HE Series features a powerful 75mm stroke that will give you up to 50% more lift force. These interceptors range in size from 750 to 1,500mm and can also be customized for the perfect fit.
These are its main characteristics:
- Available sizes: 750 – 1500 mm
- Stroke length: 75mm
- Mounting plates: 20mm or 30mm composite
- Thickness of shaft:
- Short shaft kit (standard): thickness <80mm
- Long shaft kit (optional): thickness <140mm

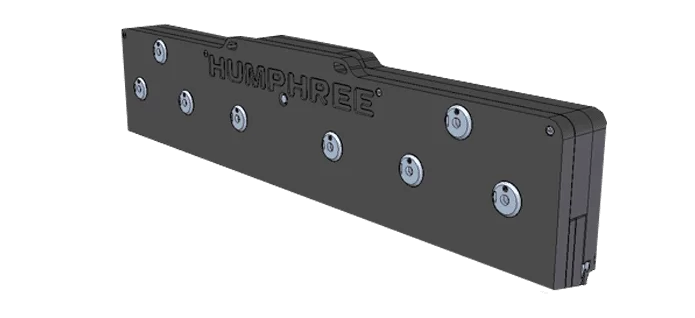

HL series
The HL series interceptors are designed for large and heavy yachts over 50 meters. The HL series has a high-performance mechanical structure: the blade of these interceptors has a powerful travel of up to 110 mm. In addition, this series can also be custom produced and adapted to any boat.
The particular characteristics of the HL series are:
- Available size: 800mm- 1500mm
- Stroke length: 110mm
- Servo drive: SU530
- Mounting plates: integrated into the interceptor structure
- Shaft thickness: 8-32mm
